Homelab Topology

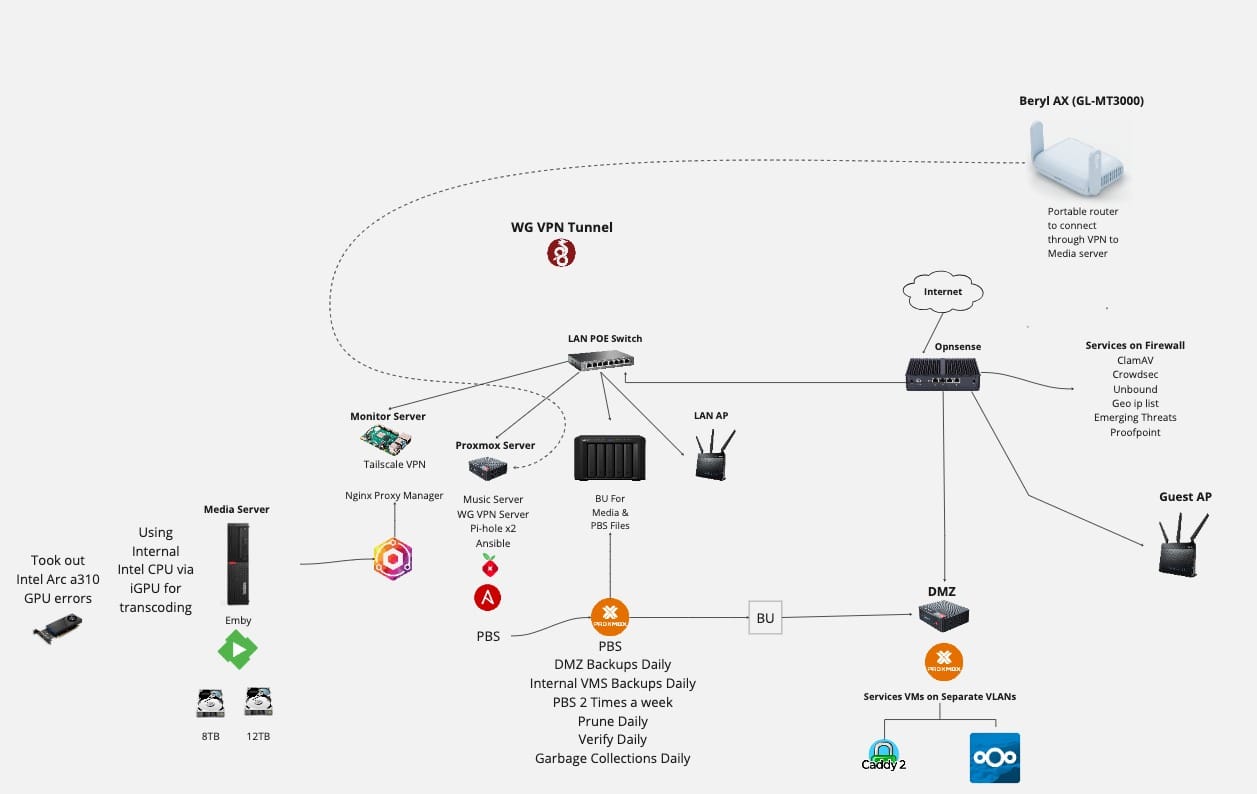

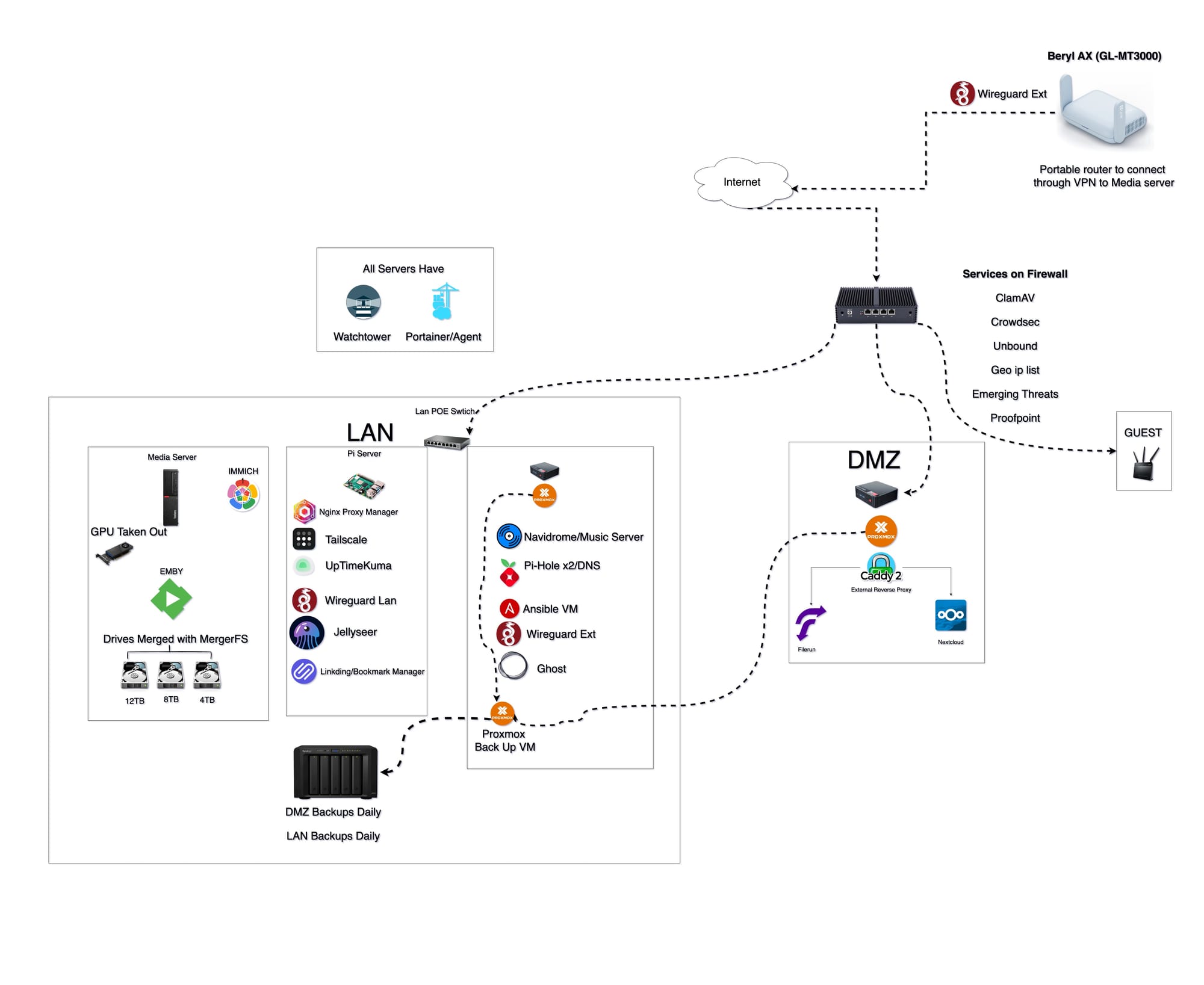

A visual history of the lab, kept as a record rather than a current-state diagram.

The build today runs OPNsense for routing and firewalling, Proxmox for virtualisation, and Docker service stacks behind Traefik, with a Prometheus, Grafana and Loki pipeline for metrics and logs. The FortiGate 60F in the earlier diagrams was migrated off, and that whole story is written up in the FortiGate series on the blog.
